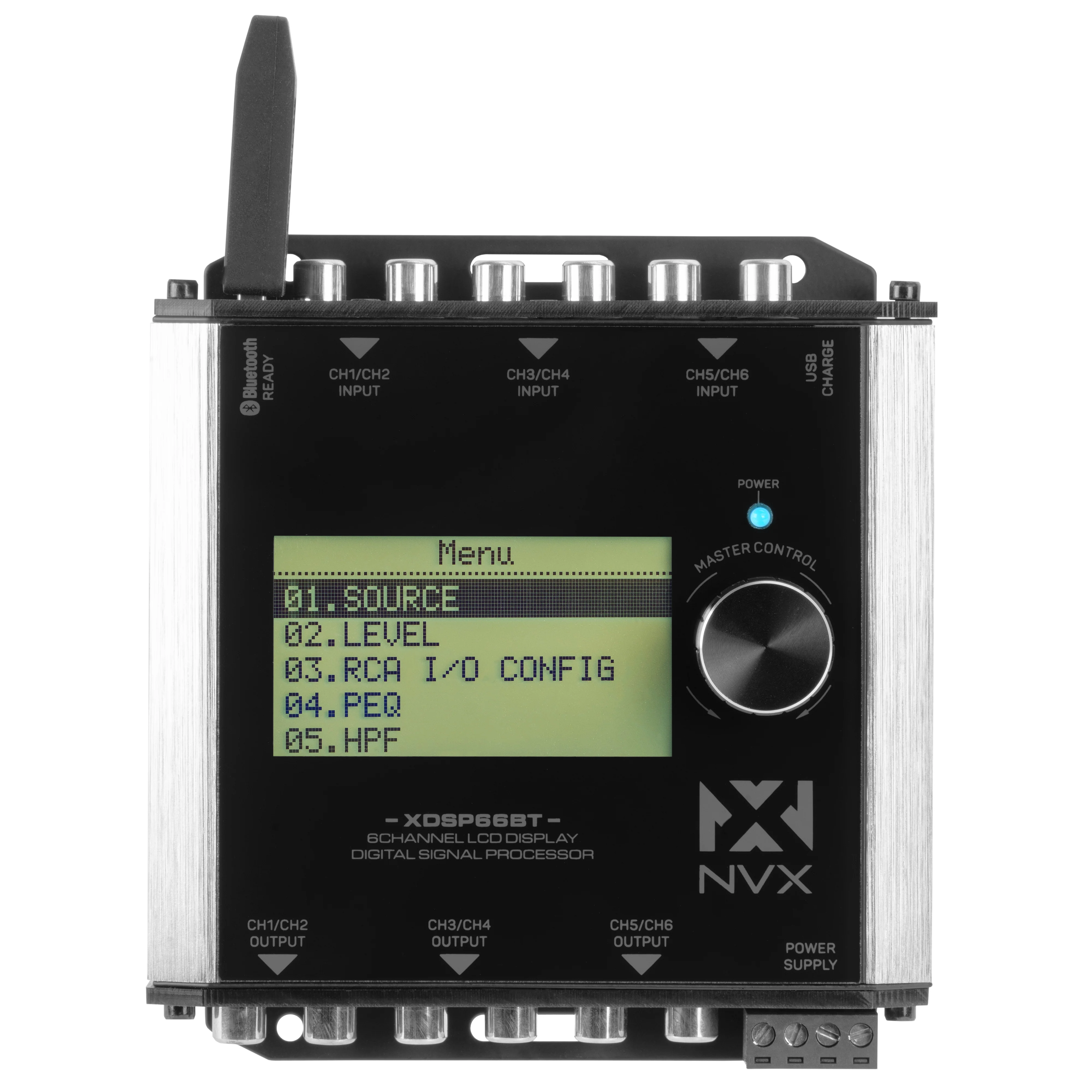

XDSP66BT 6-Channel X-Series Digital Signal Processor with 2.75" LCD Display and Bluetooth Streaming Dongle

Product Features:

• 6 channel digital signal processor
• 2.75" LCD display for visually accessing menu and settings
• Works with both speaker-level and low-level audio signals

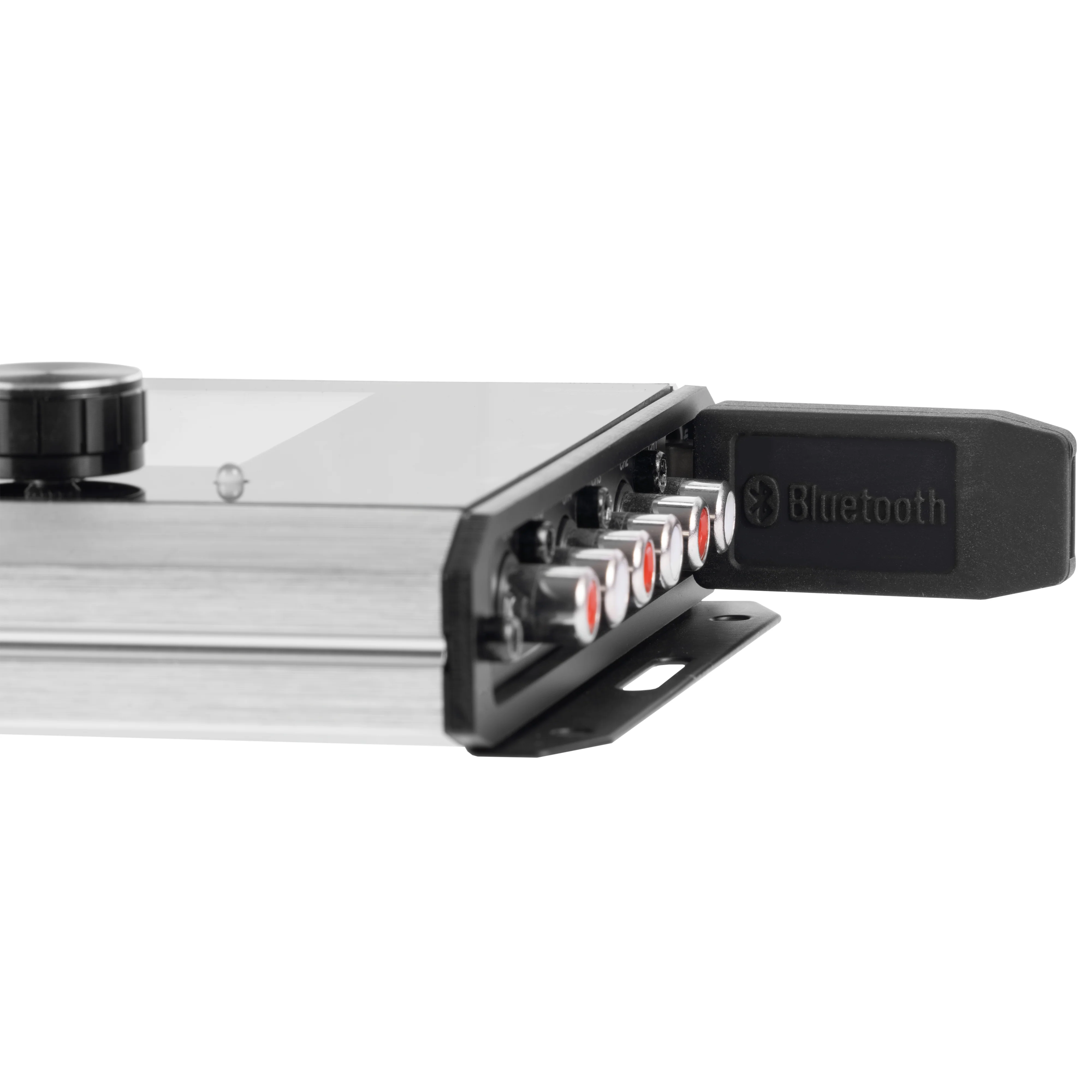

• Includes Bluetooth dongle via USB port for wireless streaming
• Rotating control knob for easy access to all menu functions
• Chargeable via standard USB charge port (5V/1A)
• Built-in status LED for power on signal
• Ground, remote in/out power supply
• Channel settings can be separate or linked together
• Fully adjustable High and Low-pass filters
• Anodized aluminum body for extra durability
• High level input: 20 volts (maximum) via RCA
• Input impedance: 20K ohm
• Output signal voltage: 6.5 volts (maximum)
• Signal-to-noise ratio: 95dB (A weighted)
• Frequency response: 10 - 25000 Hz
• Signal-to-noise ratio: 70dB
• Gain level: -40 - 0dB
• Phase adjustment level: 0 - 180 degrees
• Equalizer Band: 15 Band Parametric Equalizer
• Total harmonic distortion (THD): 1%
• Dimensions: 4.77" W x 5.1" L x 1.4" H
• 1-year warranty from original purchase date

XDSP66BT Owner’s manual
