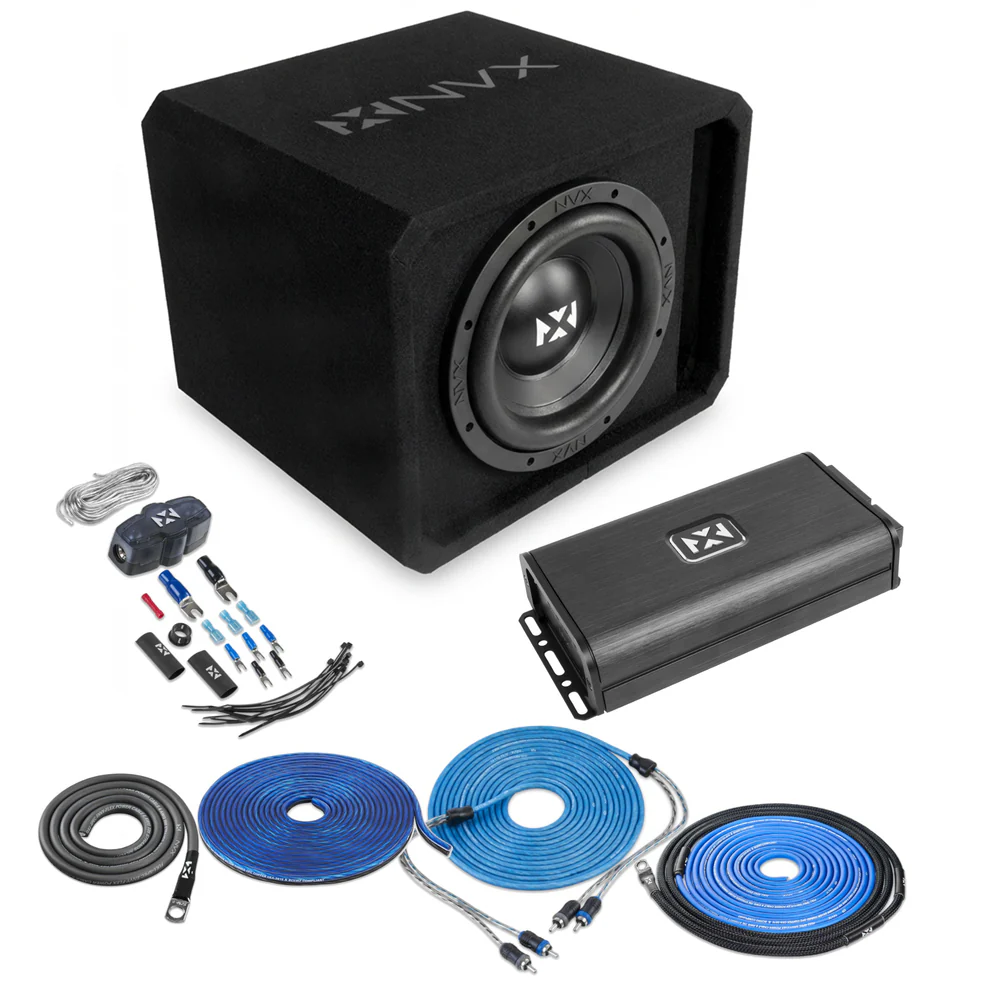

Elevate your car audio with the ultimate NVX 10-inch Subwoofer Bass Package. This compact bundle delivers a massive 500W RMS of deep, hard-hitting bass. It features one 10" NSW102v3 Dual 2-Ohm subwoofer, paired with a custom-tuned single 10" MDF ported enclosure for maximum acoustic response. Powering the system is the ultra-compact VADM1v2 Micro Class-D monoblock amplifier. By wiring the sub to a 1-Ohm load, the amp delivers a perfectly matched 600 watts of clean power. To tie it all together, we include a premium 8-Gauge OFC complete wiring kit to ensure maximum current flow. Get premium, space-saving bass in one convenient car audio kit!

NVX NE101P

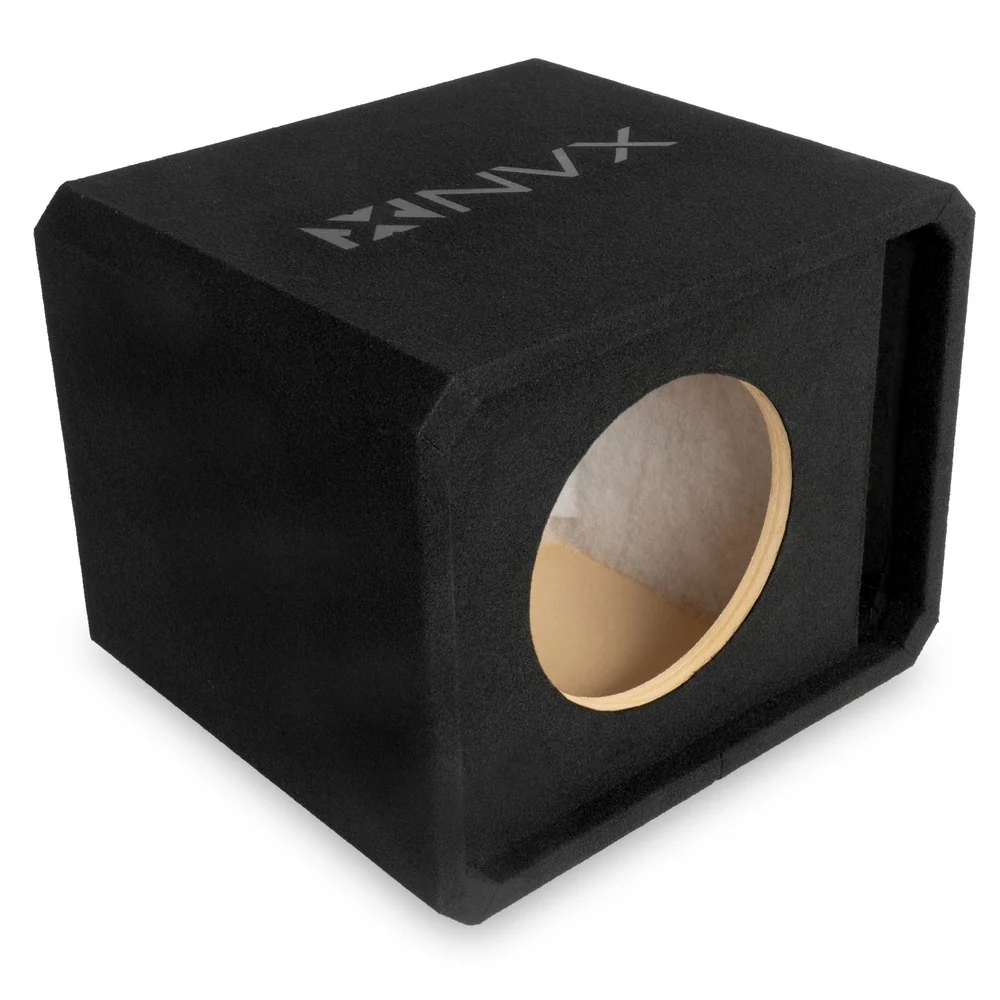

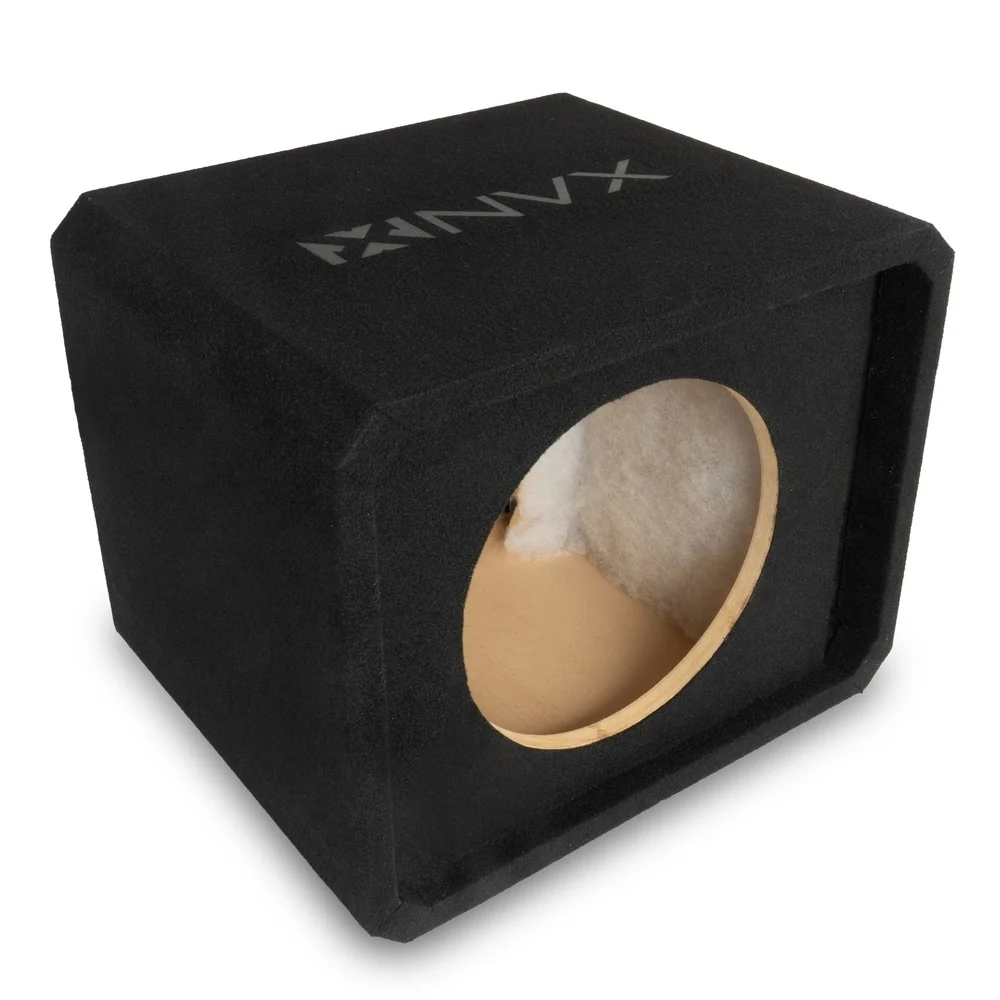

Single 10" Slot Ported 3/4" MDF Black Carpeted Subwoofer Enclosure – 1.5 Cu. Ft. with Polyfil and NVX Logo
Quantity: 1

Product Details:

10" Single Ported Subwoofer Enclosure
Made from 3/4" Medium Density Fiberboard (MDF) construction
Built with precision CNC technology for exceptional accuracy
Pre-lined with Poly-Fil for improved acoustic response
Premium Black Carpet with Black NVX Logo
Spring Loaded Push Terminals
Maximum subwoofer mounting depth: 13-7/8"
Subwoofer cutout diameter: 9-1/4"
Internal box volume: 1.50 cubic feet
Port Tuning Frequency (Fb): 38 Hz
Dimensions: 16.50" D x 19.00" W x 15.00" H
Authorized Internet Dealer
1-year Sonic Electronix Warranty

Port Specifications:

Tuning Frequency: 38 Hz
Port Width: 1.5"
Port Height: 13.50"
Port Length: 19.85"

NVX NSW102 Version 3 (NSW102v3)

1000W Peak (500W RMS) N-Series v3 10" Dual 2-Ohm Car Subwoofer
Quantity: 1

Product Details:

10" Dual 2 ohm N-Series Subwoofer
Power Handling:

Peak: 1000 watts
RMS: 500 watts

12.5 mm Xmax
Enhanced Pressed Paper Cone
High-Roll Foam Surround
Stamped Steel Vented Basket with NVX Punched Logo
2" High Temperature Copper Voice coil with Aluminum Former
Progressive Roll Single-layer Spider with Integrated Tinsel Leads
Optimized High-Velocity Pole Vent
112 oz. Double Stacked Ferrite Magnet with Protective Rubber boot
Frequency Response: 20 - 200 Hz
Resonance Frequency (Fs): 38.67 Hz
Sensitivity: 85 dB
Recommended sealed box volume: 0.60 cubic feet
Recommended ported box volume: 1.5 cubic feet
Top-mount depth: 5.36"
Cutout diameter: 8.97"
CTA-2031 Compliant
Authorized Internet Dealer
1-year Manufacturer's Warranty

NVX VADM1 v2 (VADM1v2)

600W RMS Class D Monoblock Car/Marine/Powersports Amplifier with Bass Remote
Quantity: 1

Product Details:

V Series Micro Class D 1 ohm Stable Monoblock Amplifier
RMS Power Rating:

4 ohm: 240 watts x 1 channel
2 ohm: 400 watts x 1 channel
1 ohm: 600 watts x 1 channel

Total power output: 600 watts
LED Power/Protect Light
Includes a Wired Bass Level Remote Control
Speaker-level (high-level) inputs
4-way protection circuitry (thermal, overload, speaker short protection and DC offset)
Balanced differential inputs eliminate noise picked up by signal cables
Input sensitivity:

Low level and High level: 0.2 - 10 volts

Frequency Response: 20 - 500 Hz
Total Harmonic Distortion (THD): 0.3%
Signal to Noise Ratio: >85 dB
Variable low-pass filter: 50 - 250 Hz
Subsonic filter: 10 - 50 Hz
Variable Bass Boost: 0 - 18 dB @ 45 Hz
8 AWG gauge amplifier wiring kit is recommended for installation
Dimensions: 6.49" L x 3.3" W x 1.48" H
Authorized Internet Dealer
1-year Manufacturer's Warranty
MFR #: VADM1v2

NVX XKIT82

Full Spec 8 Gauge 100% (OFC) Oxygen Free Copper Complete 2-Channel Amplifier Wiring Kit with RCA for Amplifiers up to 800 Watts
Quantity: 1

Product Details:

8 Gauge 2-Channel X-Series Complete Amplifier Installation Kit
Designed for car audio systems up to 800 watts RMS
Made from 100% Oxygen-Free Copper (OFC)
Tinned conductors for corrosion resistance
Pre-installed black nylon mesh covering protects the power wire from damage
Solid brass and satin chromed ANL/Mini-ANL fuse holder offers ideal protection for high-powered systems
Pre-terminated seamless power and ground ring terminals provide reliable performance
Full spec power and speaker wire meet or exceed American Wire Gauge standards
CEA-2015 and BC5W2 compliant
V-Series RCA Interconnect Cable
Shielded noise-rejecting coaxial construction provides protection against interference
Split-tip silver-plated ends offer high-quality performance
Molded ends equipped with colored channel identifiers for easy recognition
Twisted-pair construction featuring two conductors per channel
Includes an assortment of wire termination hardware and cable ties
Authorized Internet Dealer
1-year Manufacturer's Warranty

Kit includes:

17 ft. Frosted Blue 8 gauge power wire with seamless crimp ring terminal
3 ft. Frosted Black 8 gauge ground wire with seamless crimp ring terminal
17 ft. Clear 18 gauge remote lead wire
20 ft. Frosted Black/Blue 16 gauge speaker wire
One 16.4 ft. 2-channel dual twisted construction RCA interconnect Cable (NVX XIV25)
One NVX XMANL04 ANL/Mini-ANL Fuse Holder with 60 amp Mini-ANL fuse
One Black rubber firewall grommet
Two 8 Gauge Nickel Plated spade terminals
Four 18 Gauge Spade terminal
Two 18 Gauge Red butt connectors
Four 16 Gauge quick disconnect
Five 16 Gauge Nickel Plated spade terminals
Two Heat Shrink tubes with the NVX logo
Ten 6" Black zip ties
